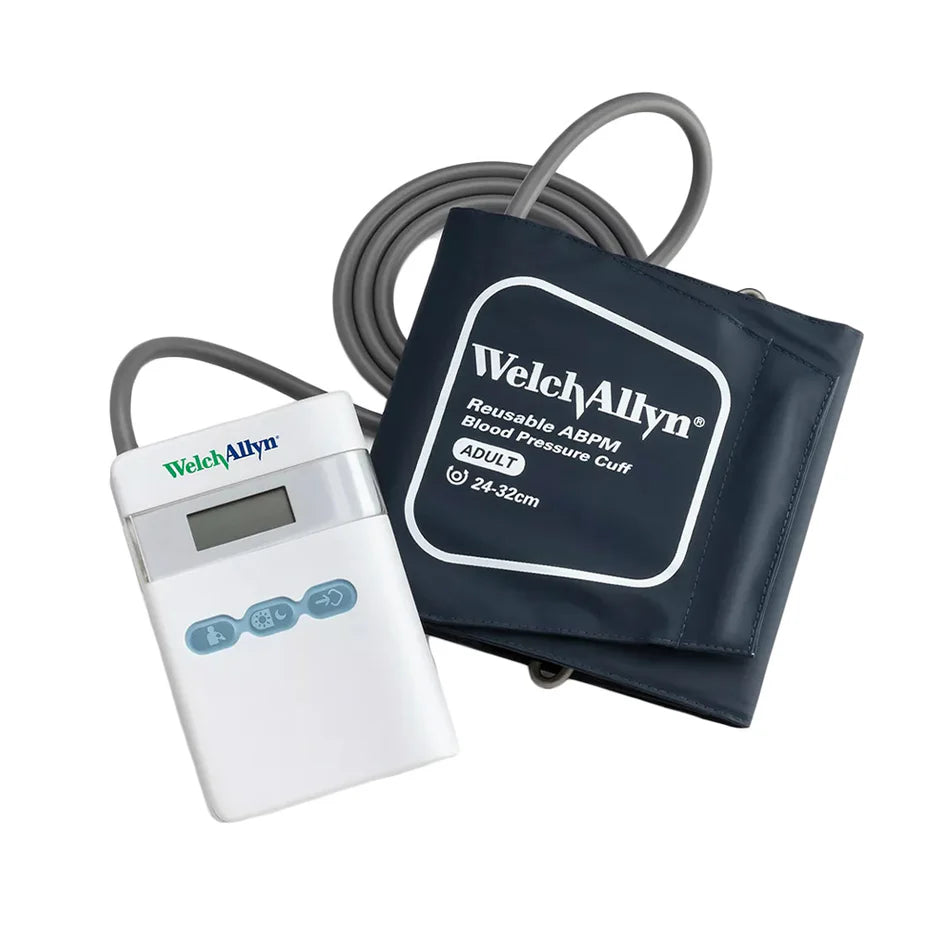

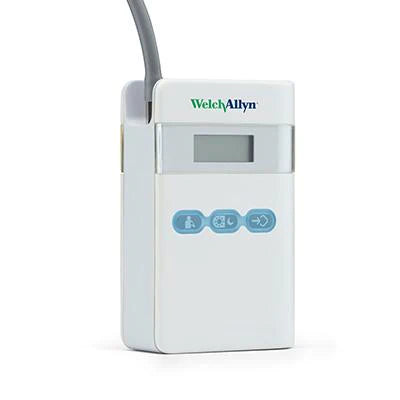

Welch Allyn/Hillrom-ABPM-7100 ABPM 7100 Recorder Excluding Software

Features

• Lightweight, compact, and quiet for improved patient compliance
• Unlimited protocols for programming measurement periods and inflation frequencies
• Auto feedback logic during inflation for excellent patient comfort and acceptance

Specifications

• Dimensions: 121 mm x 80 mm x 33 mm.
• Weight: approx. 220 g excluding batteries.
• Measurement Pressure Range:
• Accuracy: +/- 3 mmHg in display range.
• Static Pressure Range: 0 to 300 mmHg.
• Pulse Range: 30 to 240 bpm.
• Procedure: Oscillometric.
• Measurement Intervals: 0, 1, 2, 3, 4, 5, 6, 10, 12, 15, 20 or 30 measurements per hour.
• Measurement Logs: 4 adjustable interval groups.
• Memory Capacity: 300 measurements.
• Battery Capacity: > 300 measurements.
• Operating Temperatures: +5°C to +40°C.
• Storage Environment: -25°C to +70°C and 15% to 93% humidity.
• Ambient Pressure: 700 to 1060 hPa.
• Power Supply: 2 Ni-MH batteries with 1.2 V each and min. 1500 mAh (AA, Mignon) or 2 Alkali 1.5 V batteries (AA Mignon, LR6).
• Interfaces: USB-interface cable, Bluetooth (only available with optional HMS software).

Data sheet

Welch Allyn ABPM 7100 Ambulatory Blood Pressure Monitor Directions for Use
