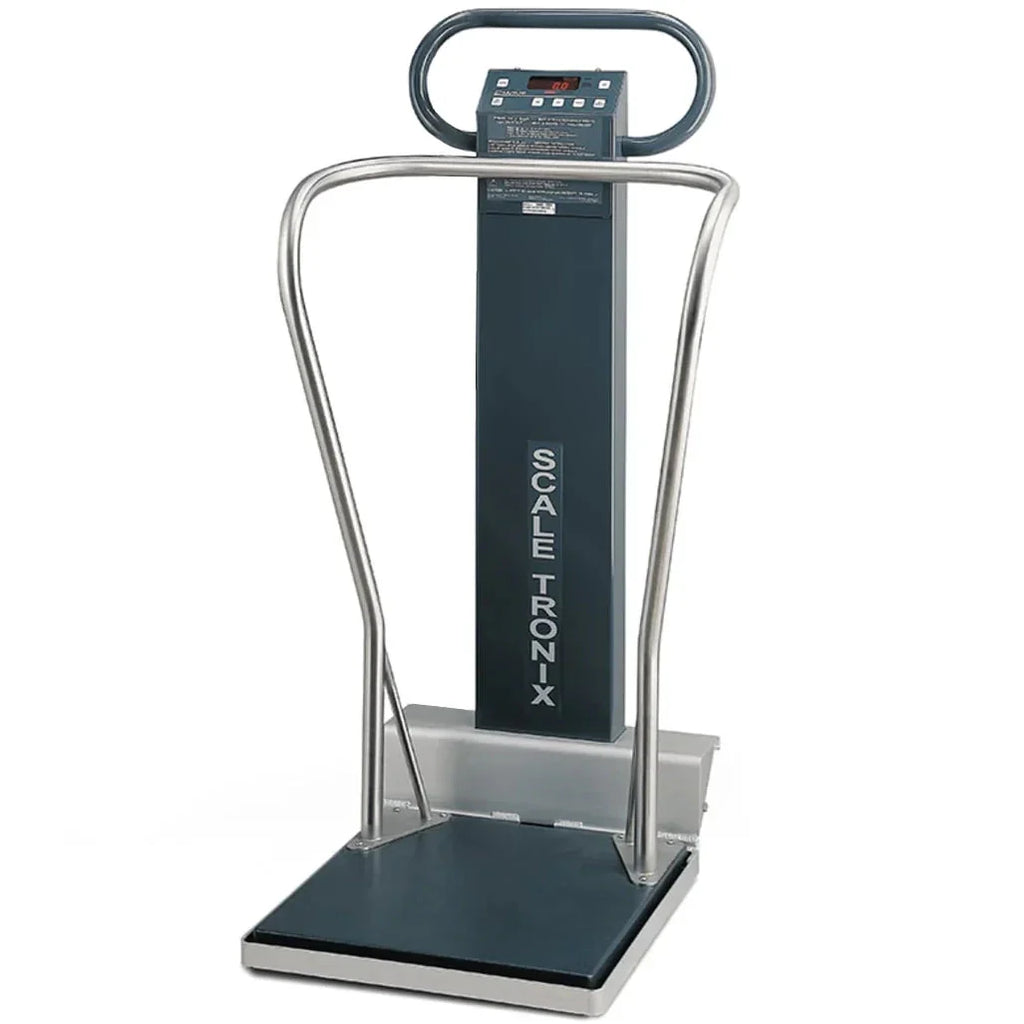

Welch Allyn Scale-Tronix 5002 Mobile Stand-On Scale

Features

• Never needs zeroing, helping you weigh a continuous stream of patients.
• Handrail helps unsteady patients without affecting readings.
• Quick recall keeps the last reading, even after the patient has left the scale.
• Low-profile platform and heavy-duty stainless steel handrail designed to help reduce fall risk.
• Versatile and ideal for high-traffic areas.
• Readout: Digital LED display in pounds and kilograms.
• Weighing Mechanism: Electronic load cells.
• Successive Weighing: Allows weighing a continuous stream of patients without zeroing in between.
• Automatic Zero: Automatically returns to zero, ready for next patient.
• Weight Recall: Recalls last weight.
• Reweigh: Recomputes patient's weight while patient is on scale.
• Computer Connectivity: RS-232 output (optional).
• Low Battery Indicator: Indicates battery needs replacing.
• Audible Signal: Indicates weight reading is entered into memory.
• Heavy-duty rubber wheels.

Specifications

• Weighing Capacity: 880 lb (400 kg).
• Dimensions: 22" x 28" x 60" (55.9 cm x 71.1 cm x 152 cm).
• Platform: 18" x 19.5" x 1.5" (45.7 cm x 49.5 cm x 1.5 cm).
• Resolution: 0.1 lb (100 g).
• Power Source (Cordless): 6 D-size disposable alkaline batteries. Line cord available.
• Gross Weight: 61 lb (27.7 kg).

Configurations

• #5002-XX-X: Standard Weight (lb/kg), Data Port, Battery Power.
• #5002-KX-X: kg Only, Data Port, Battery Power.
• #5002-XX-B: Standard Weight (lb/kg), Data Port, Power Adapter.
• #5002-KX-B: kg Only, Data Port, Power Adapter.
• #5002-XP-B: Standard Weight (lb/kg), Printer, Power Adapter.
• #5002-KP-B: kg Only, Printer, Power Adapter.

Data Sheets

Welch Allyn Masted Scales Service Manual

Welch Allyn Masted Scales Directions for Use

Welch Allyn Scale-Tronix 5002 Mobile Stand-On Scale Assembly Instructions

Welch Allyn Scale-Tronix 5002 Mobile Stand-On Scale Specifications Sheet
